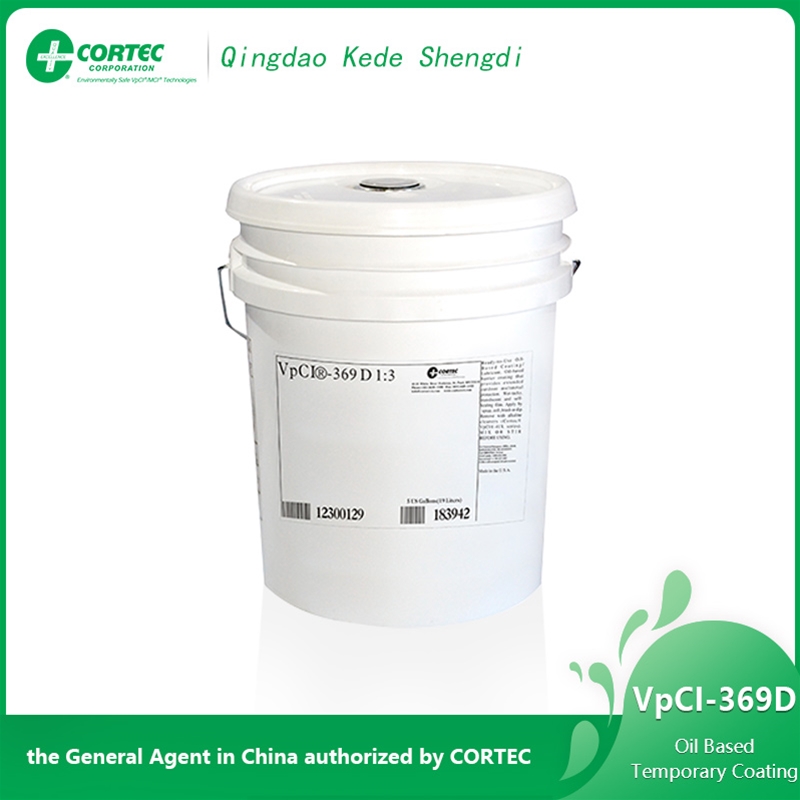

VpCI-369D Oil Based Temporary Coating
市 場 價：￥0
優 惠 價：￥1
庫 存：0
PRODUCT DESCRIPTION：
VpCI®-369 D is an oil-based temporary coating that provides protection in harsh, outdoor, sheltered applications. Provides multi-metal protection. Excellent lubricity. Can be matched to some custom colors.
E-Mail：zzgvci@163.com
商品詳細
NSN 8030-00-244-1295, 244-1297, 244-1298, 01-149-1731
UFI: RQ60-A0G6-600A-8GA8
PACKAGING & STORAGE
VpCI®-369 D is available in 5 gallon (19 L) pails, 55 gallon (208 L) metal drums, liquid totes, and bulk.
To ensure best product performance, store in original packaging, indoors, and out of direct sunlight at 40-100 °F (4-38 °C).
Shelf life: 1 year
CHARACTERISTICS/TECHNICAL DATA
|
Volume Solids |
94% |
|
Gloss (ASTM D532) |
NA |
|
VOCs (ASTM D3960) |
0 |
|
Viscosity |
35-40 sec #2 Zahn Cup, 80 CPS @ 20C |
|
Pencil Hardness (ASTM D3363) |
NA |
|
Spreading Rate |
1508 ft2/gal @ 1.0 mils DFT (36.9 m2/L @ 25um) |
|
Weight per Gallon |
7.65 lbs/gal (0.91 kg/L) |
|
Flash Point |
234 °F (112 °C) |
|
Recommended DFT |
1.0-3.0 mils (25-75 um) |
|
Recommended WFT |
1.0-3.0 mils (25-75 um) |
|
Dry to Touch |
NA |
|
Dry to Handle |
NA |
|
Recoat Time |
NA |
|
Force Dry |
NA |
|
Full Cure |
NA |
|
Salt Spray (ASTM B117) |
100 hrs |
|
Humidity (ASTM D1748) |
1000 hrs |
|
Adhesion (ASTM D3359) |
NA |
|
Flexibility (ASTM D522) |
½" mandrel (1.27cm) |
APPLICATION
Surface Preparation
Substrate should be free of grease, oil, dirt, fingerprints, drawing compounds, rust inhibitors (except Cortec® ap- proved), or any other surface contamination that could affect adhesion. For production line applications, use VpCI®- 440 or similar phosphatizing pre-treatment. For structural steel applications, Cortec® recommends a minimum of a NACE #3/ SSPC-SP6 commercial blast clean. Consult Cortec® Technical Service and/or test system adhesion prior to full scale application.
Note: Power agitate to a uniform consistency using a “squirrel cage” type mixer, hand-held drill mixer, or other equivalent method. VpCI®-369 D can be applied by spray, roll, brush, or dip.
Typical Equipment Setups
HVLP / Conventional Spray
•Tip 0.02”-0.11” (0.5-2.8 mm) dependent upon pressures and viscosity
•Air Pressure 45-55 psi
•Fluid Pressure 10 psi
•Fluid hose should be ?” (0.95 cm) I.D. with a maximum length of 50 feet (15.2 m). Pot should always have dual regulation and be kept at same elevation as spray gun.
Air Assisted Airless / Airless
•Tip 0.015”-0.035” (0.38-0.89 mm) dependent upon pres- sures and viscosity
•Pressure 1800-2500 psi
•Hose should be ?” (0.95 cm) I.D. minimum, but a ¼”
•(0.64 cm) I.D. whip end section may be used for ease of application. A maximum length of 100 feet (30.5 m) is suggested.
Cleanup
Clean tools/equipment immediately after use with Butyl Ac- etate when paint is still wet. When dry, use Butyl Cellusolve or MEK. Follow mfg’s safety recommendations when using any solvent.
